Battery energy storage for DC-UPS systems

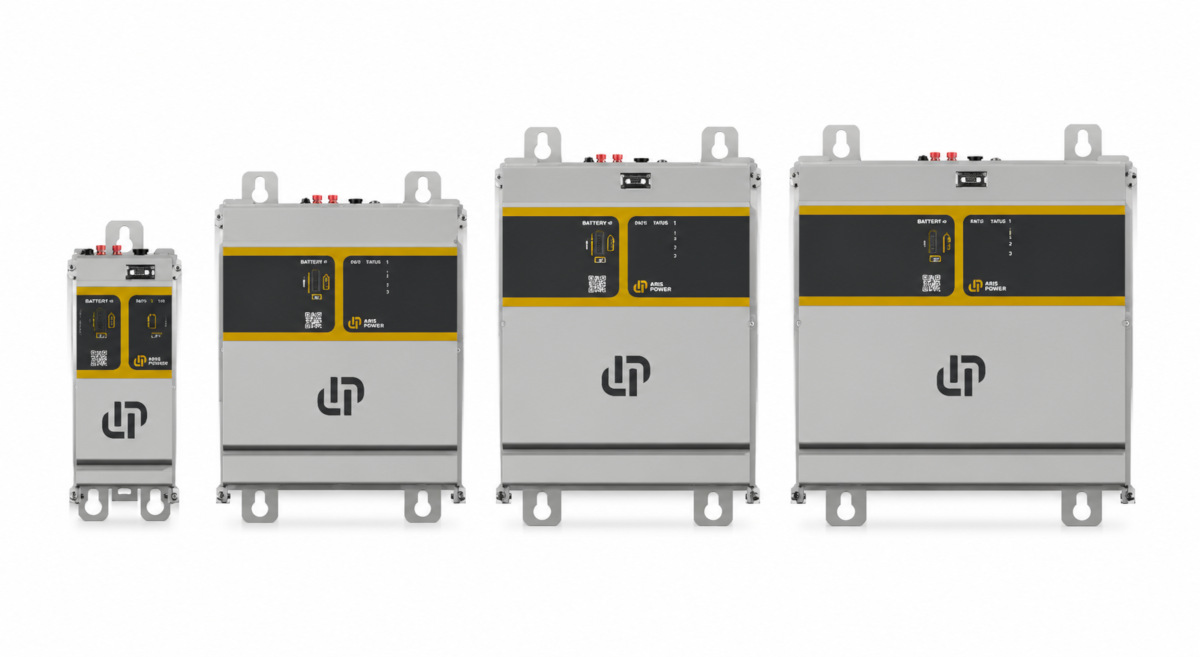

BBX Series
This series of casings is designed to house standard AGM VRLA batteries from 1.2Ah to 12Ah. In any energy backup system, batteries are the most critical component. However, the proper installation of batteries in these sizes is often overlooked, resulting in poor or informal fastening and wiring.
The BBX series is specifically designed to provide easy installation, mechanical protection, and safe electric connection to batteries, the BBX series is a professional solution for the practical and safe installation inside electric enclosures.
They can be installed on a DIN rail. In this way, the batteries can be wired like one more in-line component, minimizing wiring length as well. As a selectable option, they can also be installed directly on the mounting plate by means of pre-cut openable flanges.
When the BBX battery box and a DCU DC-UPS are installed, they provide a critical power backup system where system integrity and resilience are required.
They are available in three versions:
- casing only
- with integrated batteries
- with integrated batteries and SBS temperature compensation
Features
- Lead-acid AGM, VRLA battery technology
- Quick Installation on DIN rail or direct on mounting plate
- Automatic detection and continuous monitoring by DCU Series DC-UPS
- Tool-free battery replacement during operation
- Communication with DCU DC-UPS via signal serial port (SBS version)
- Maintenance-free
- Built-in Temperature compensation probe (SBS version)
- Suitable for backup of high inrush current DC loads and for maximum buffer times.
- Delivered fully charged from warehouse.
- Built-in protection fuse plus spare.
